These are custom made for us and designed for low end torque, but also plenty of top end speed. I personally run this on my bike and it is truly a monster! Power wheelie at 45mph with a 5" extended swingarm. This will require our 200mm dropout swingarm. I am running 400 line amps and 1000 phase from a fardriver 721000 and have been for months. The motor is rated for 5000 watts, but like all QS they under rate them by a lot. I push 30,000 watts to mine with no issues! Any warranty would be handled directly through the manufacturer. It is recommended by them that you run 250/750. I hit 75 mph and let off, if anyone is braver than I, please keep us posted on your top speed records! It gets there fast. Recommended for only street use. I was always really impressed with the qs165 setup we offer, but this is on a whole other level.
Motor Specification:

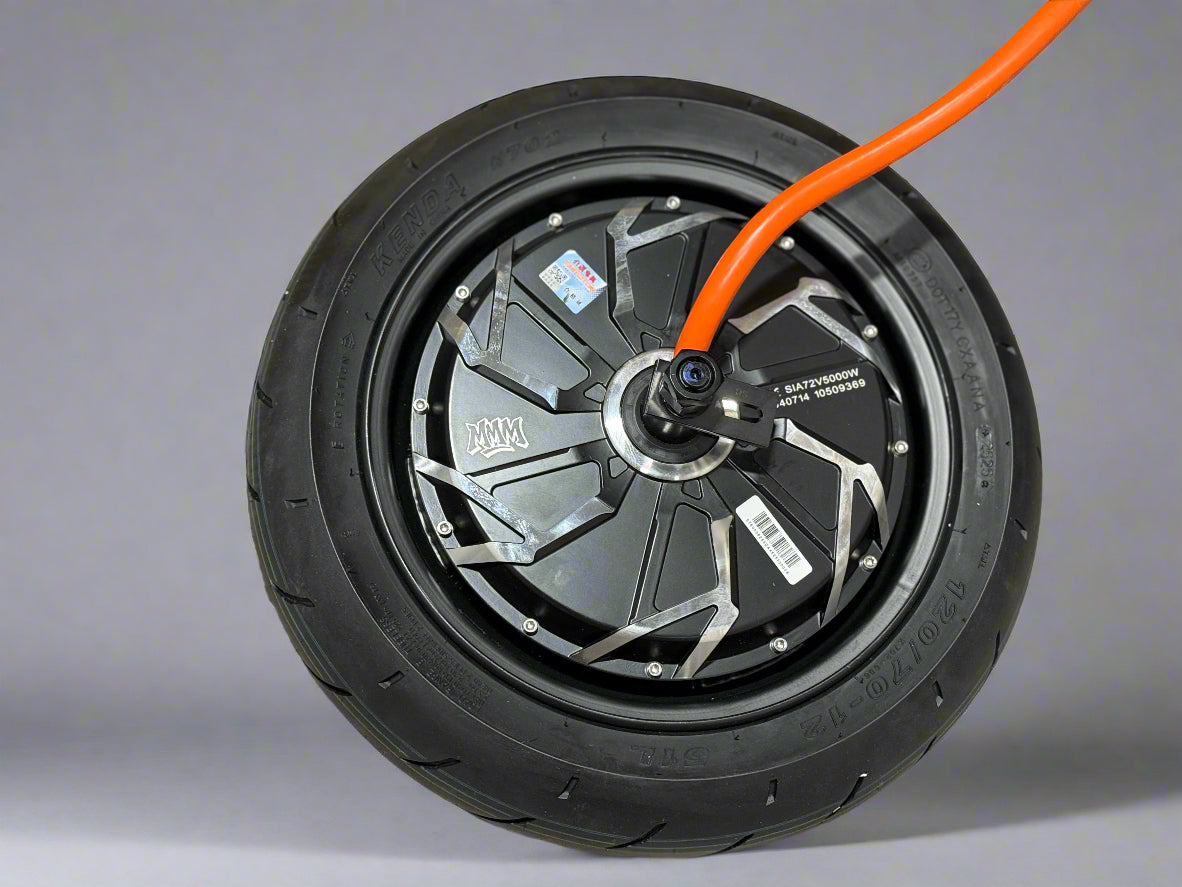

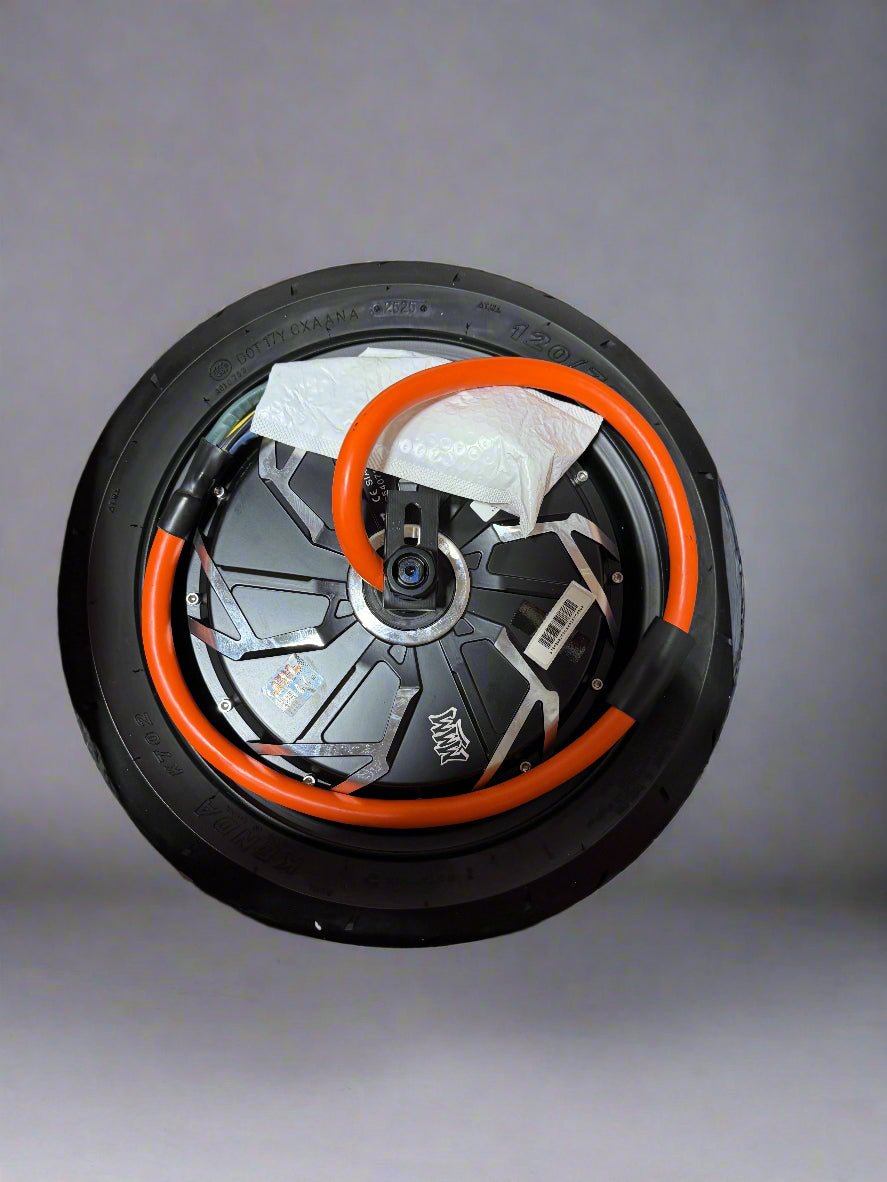

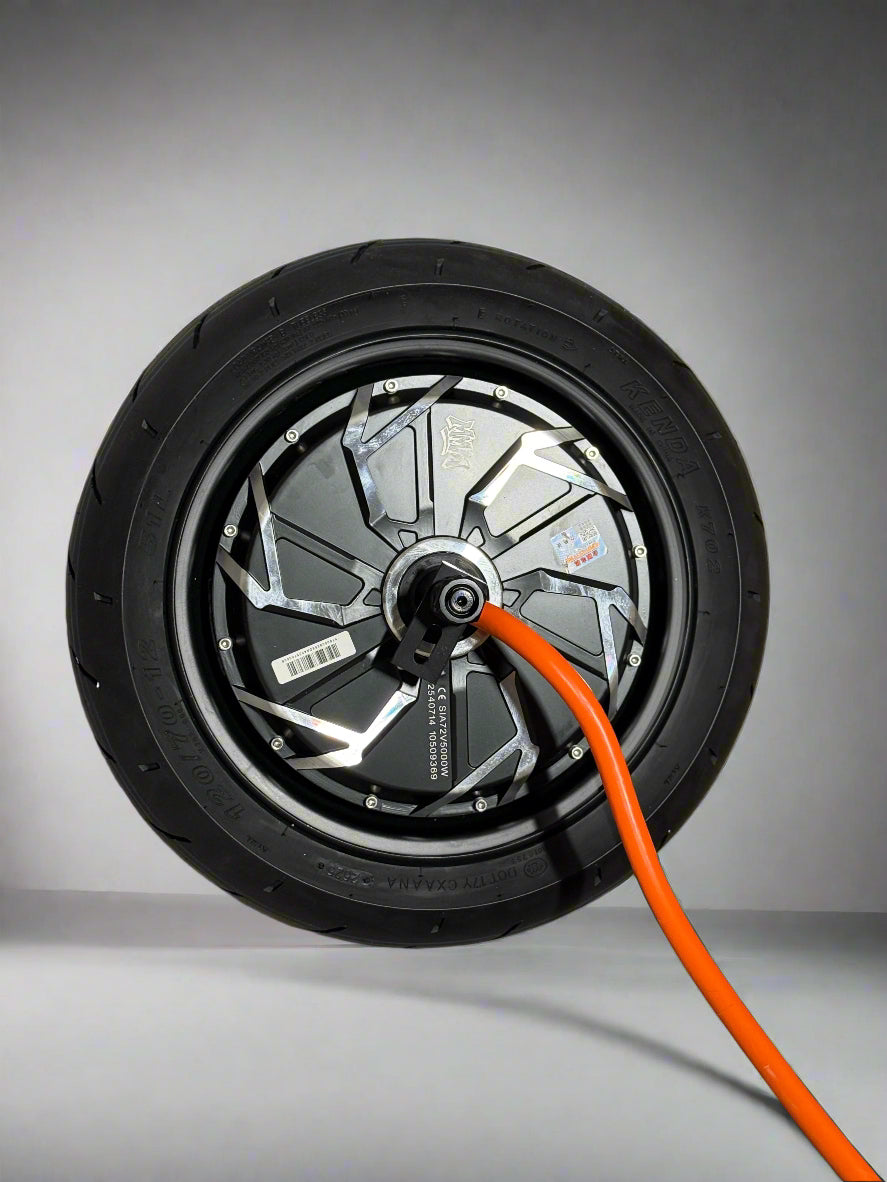

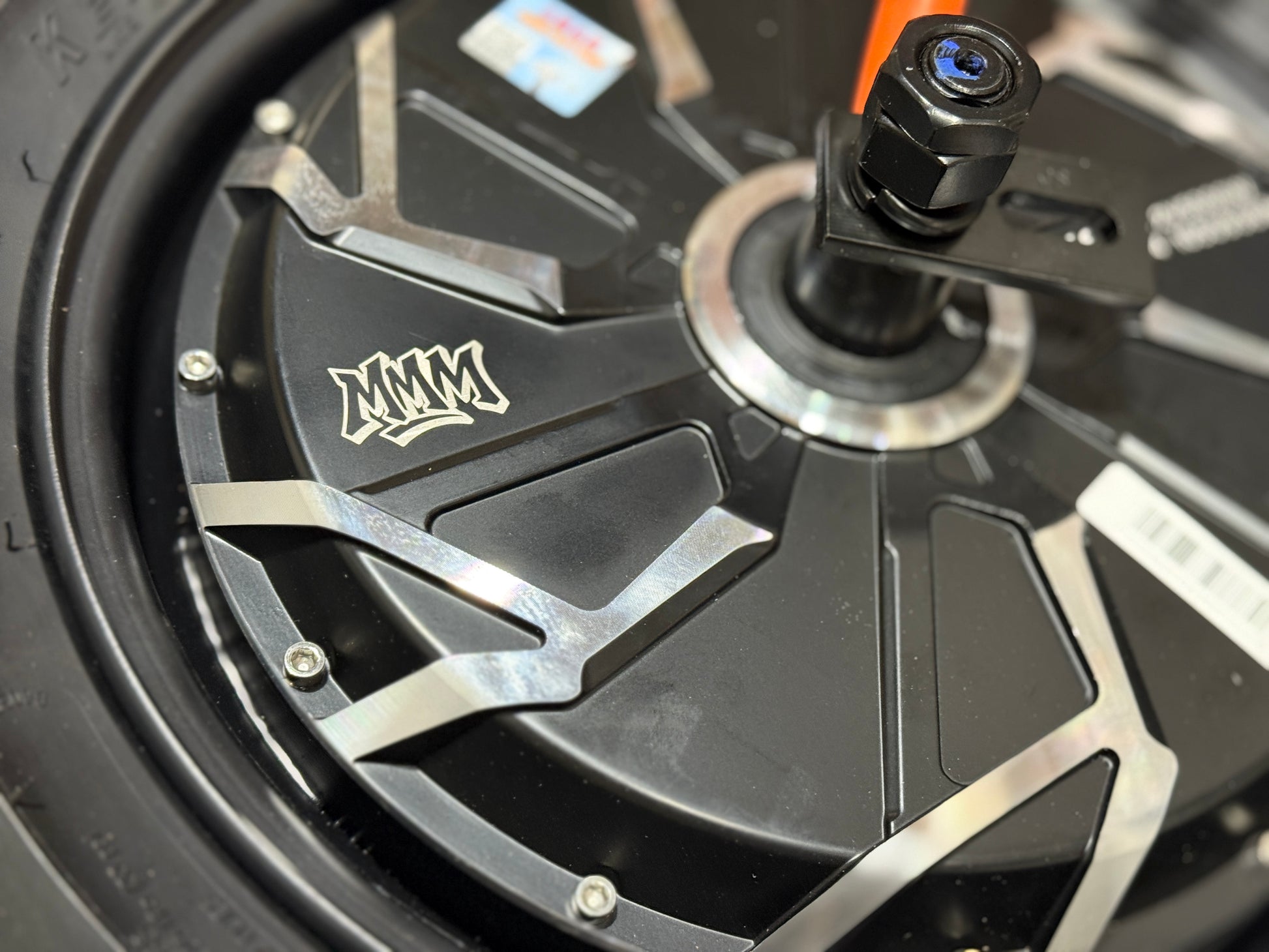

1. Motor Type: BLDC Hub Motor with Permanent Magnets

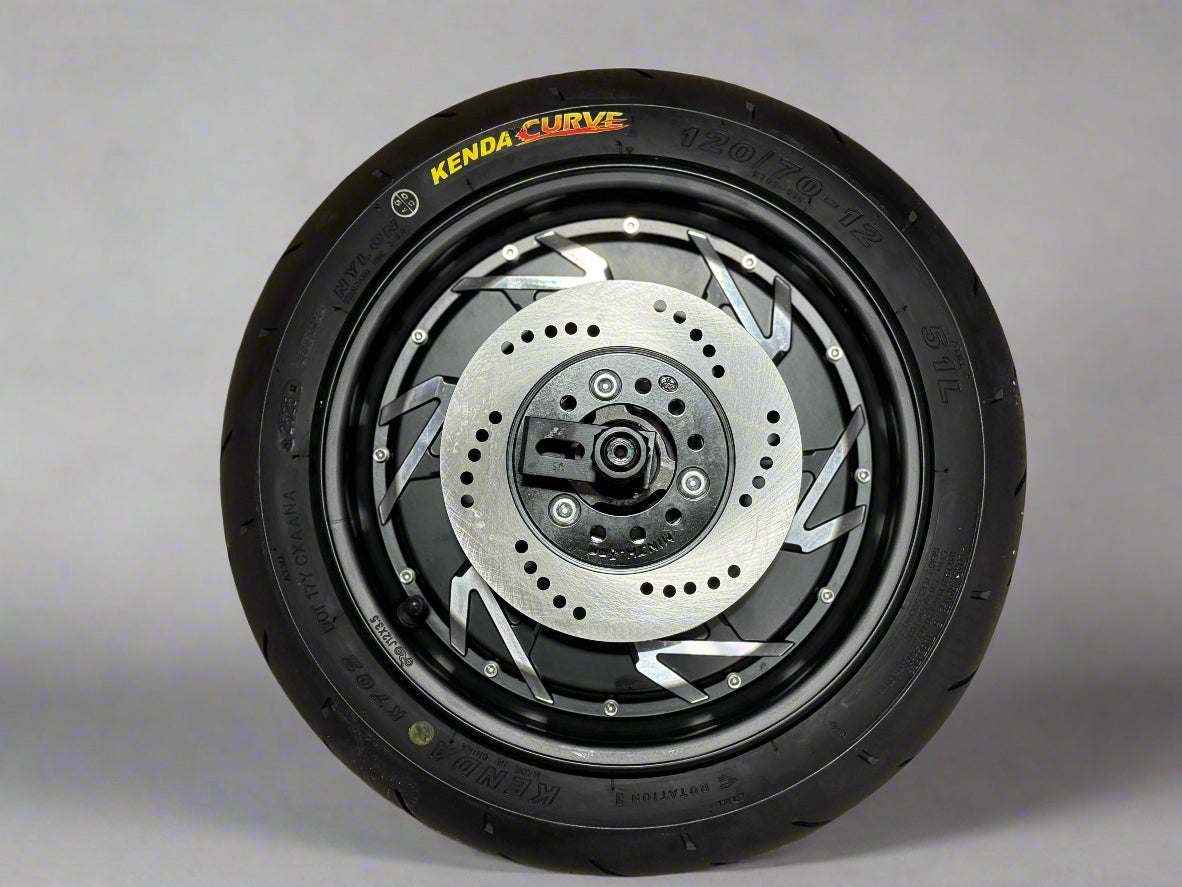

2. Motor design: Double axle out with 12inch rim
3. Rim size:3.5×12

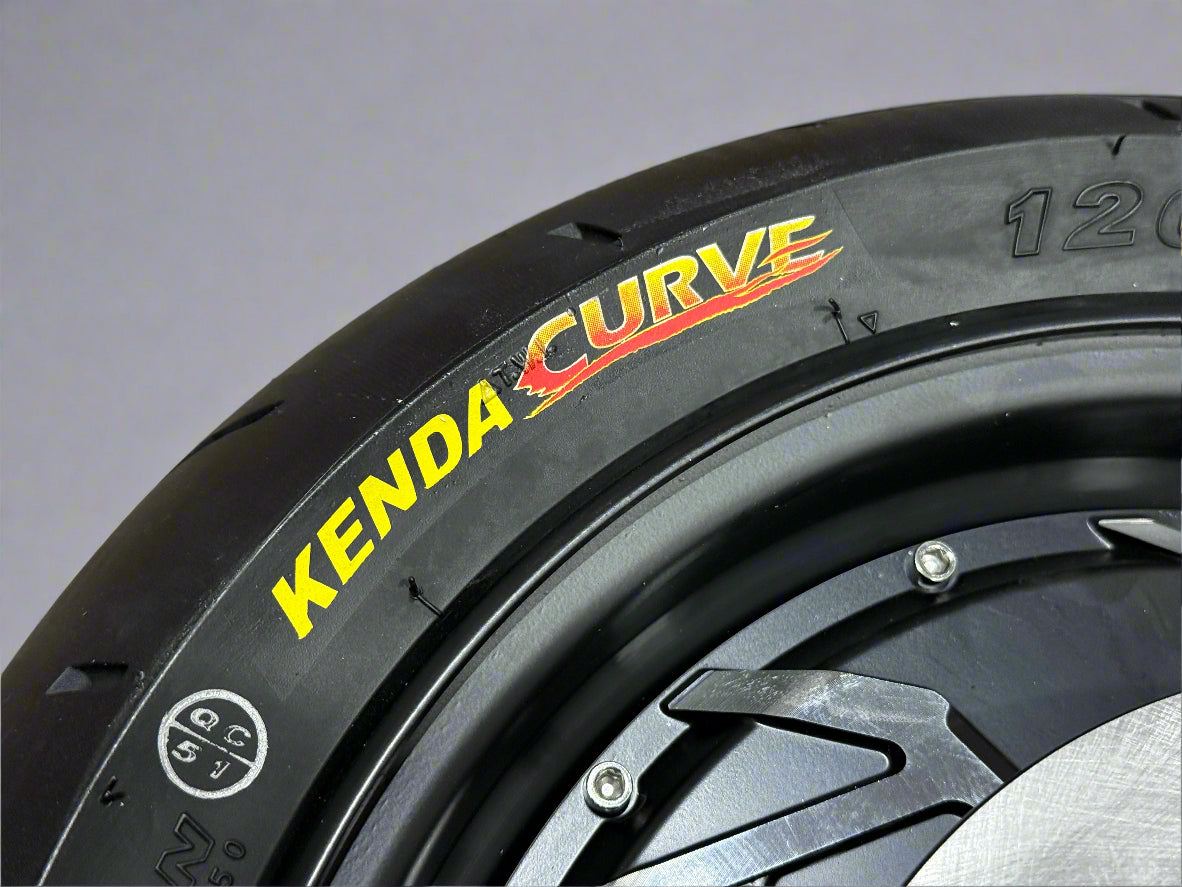

4. Matching Tire: 120/70-12
5. Magnet Height: 45MM
6. Pole Pairs: 16 pairs
7. Rated Power: 5000W
8. Peak Power: 10000W
9. Rated Voltage: 72V( 60V-96V Can be optional)
10. Speed: 100km/h (30-100km/h can be customized)
11. Max No-load RPM: 1320RPM
12. Max Torque: 230N.M
13. Max Efficiency: 89%
14. Continious current:77A at 72V
15. Max current:100A at 72V

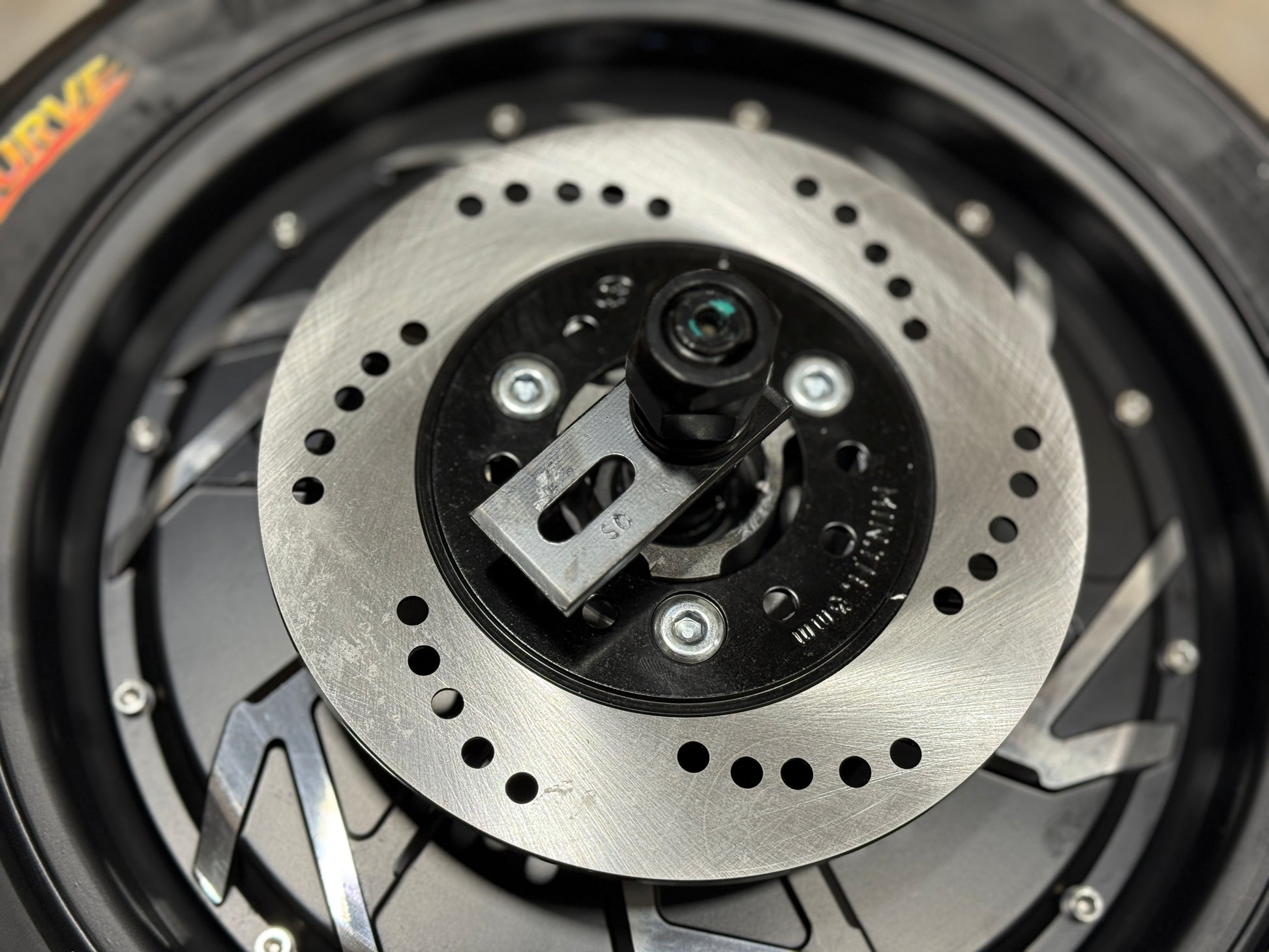

16. Brake type: Disc brake
17. Rear Fork width for installation: 200mm
18. Winding Frame material: Aluimium

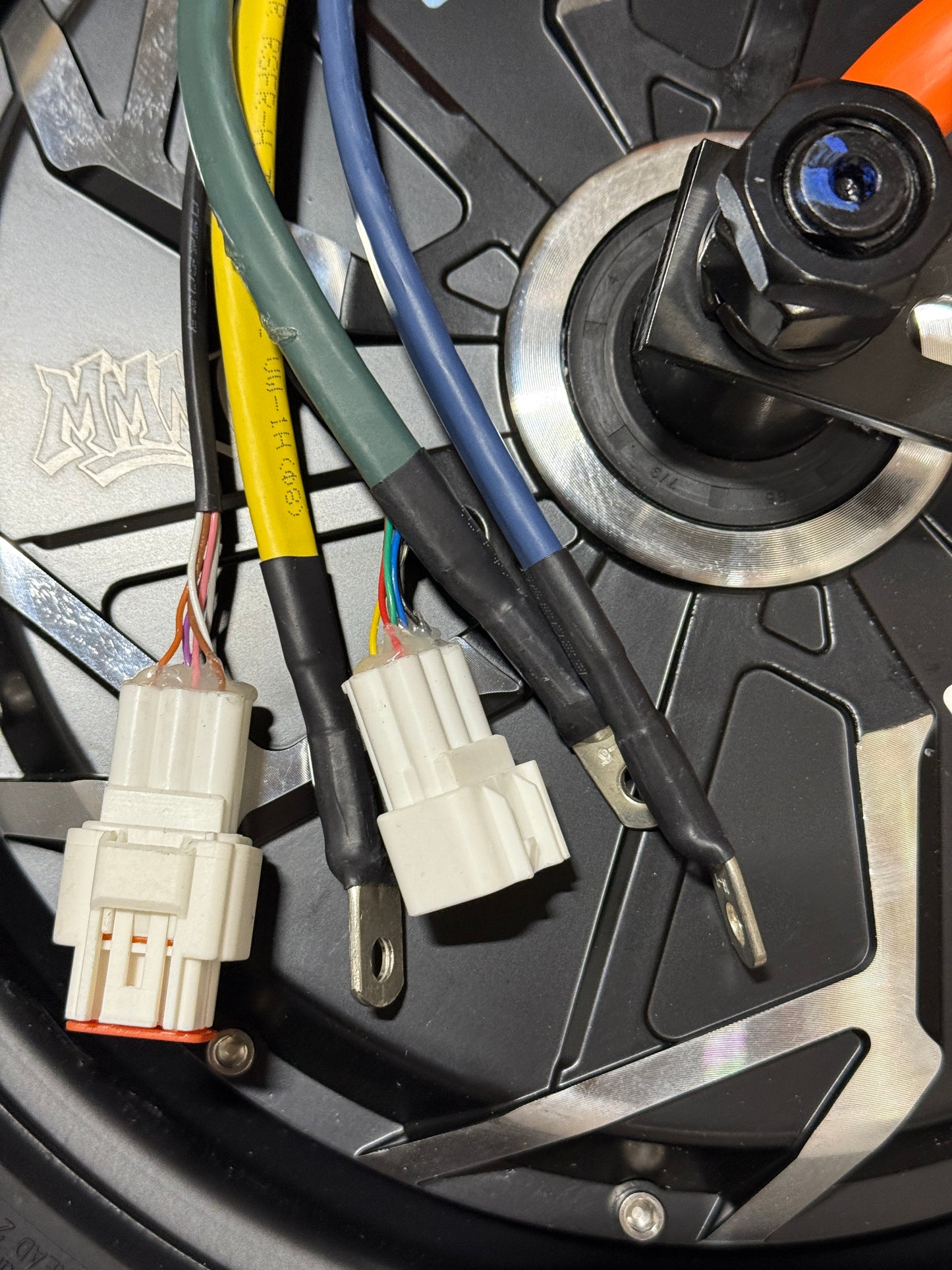

19. Cross Section of Phase wire: 16mm2
20. Hall sensor phasing angle: 120 degree
21. Temperature Sensor: Optional
22. Max. Working Temperature: 70 degree, Peak 120 degree
23. Waterproof Grade: IP66
